Performance comparison with nav2_amcl

Environment details

  • CPU: Intel(R) Core(TM) i7-10750H CPU @ 2.60GHz x 6 cores x 2 threads/core

  • RAM: 16384 MB

  • Host OS: Ubuntu 22.04.2 LTS

  • Commit hash: 640c23dd654bd604493d7c98b28625269b123b21

Experimental setup

The following configuration was used during the experiments:

  • The benchmarks were run using 250, 300, 400, 500, 750, 1000, 2000, 5000, 10000, 20000, 50000, 100000 and 200000 particles.

  • beluga_amcl was run both using multithreaded and non-multithreaded configurations. nav2_amcl only provides non-multithreaded execution.

  • Both the beam sensor and the likelihood field sensor model were tested.

  • The bagfile containing the synthetic dataset was replayed at 3x speed.

More specific configuration details can be found in the params.yaml files:

Except for the multithreading and sensor model parameters, the configuration on all of the files is identical.

Recorded metrics

The following metrics were recorded during each run:

  • RSS (Resident Set Size), amount of memory occupied by a process that is held in RAM.

  • CPU usage.

  • APE (Absolute Pose Error) statistics: mean, median, max and rmse.

Results

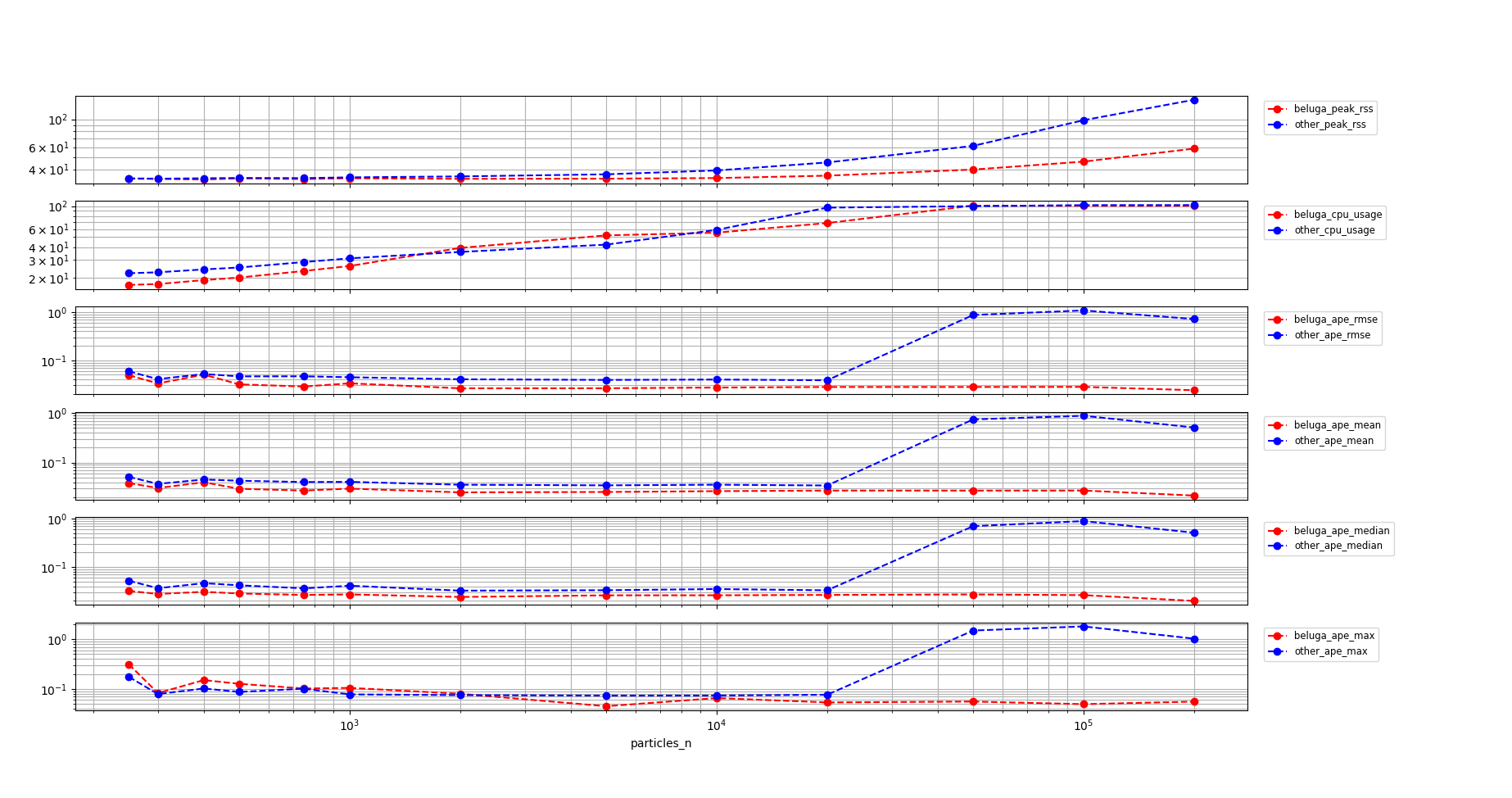

Non-multithreaded Beluga vs. Nav2 AMCL with Likelihood Field Sensor Model

Non-multithreaded Beluga vs. Nav2 AMCL with Likelihood Field Sensor Model

Commentary on the results:

  • Memory usage for beluga_amcl grows slower than for nav2_amcl throughout the whole range of particle counts.

  • beluga_amcl has about the same level of CPU usage as nav2_amcl under $10^4$ particles. Beyond that point both non-multithreaded implementations saturate near 100% CPU usage.

  • The trajectory APE is on par or slightly better for beluga_amcl than nav2_amcl throughout the whole range of particles. In the CPU saturation region, the localization performance for nav2_amcl suddenly degrades while beluga_amcl continues to provide some level of service.

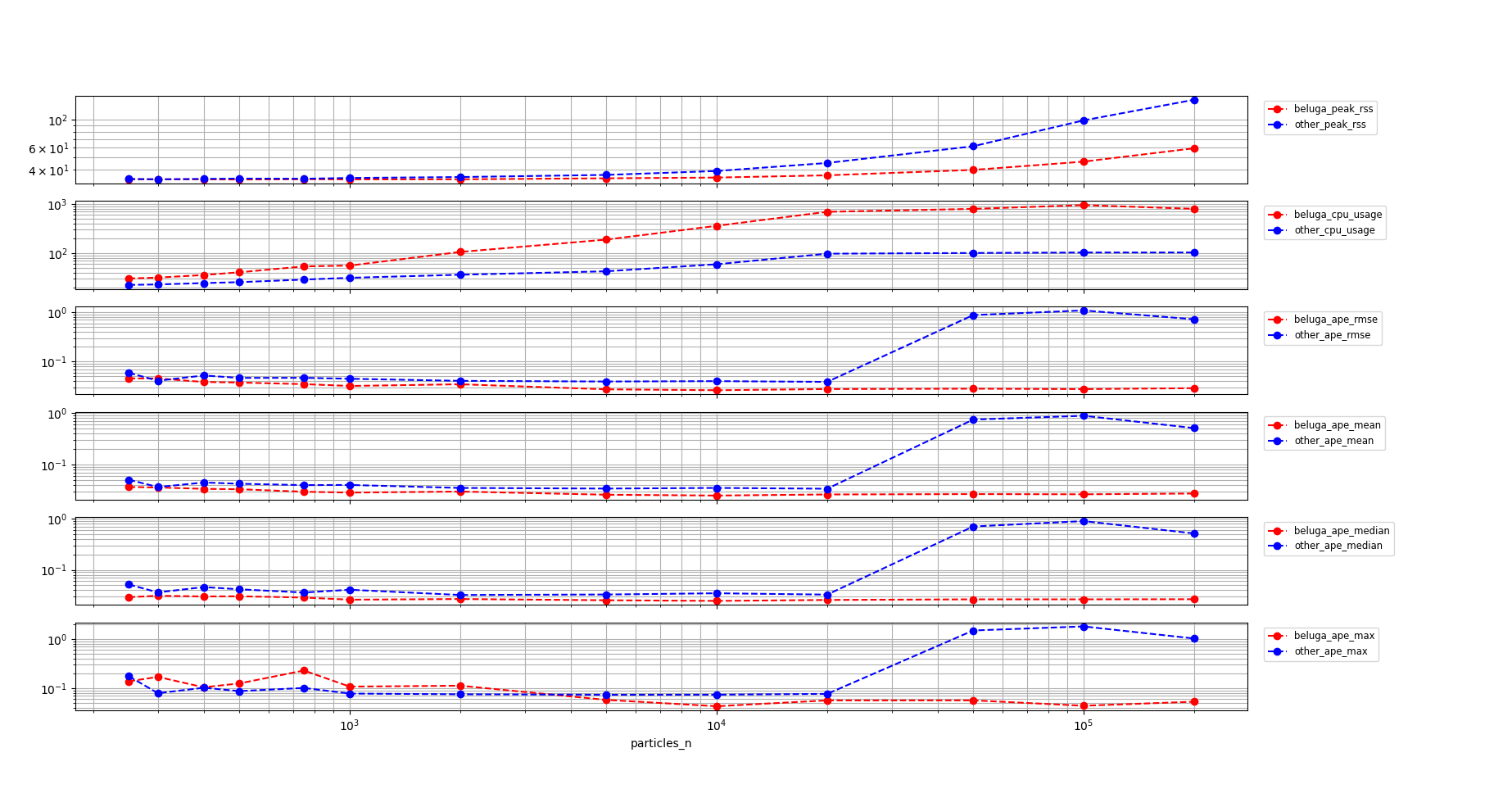

Multithreaded Beluga vs. Nav2 AMCL with Likelihood Field Sensor Model

Multithreaded Beluga vs. Nav2 AMCL with Likelihood Field Sensor Model

Commentary on the results:

  • Memory usage for beluga_amcl grows slower than for nav2_amcl throughout the whole range of particle counts.

  • beluga_amcl provides consistent APE performance all the way up to $10^5$ particles.

  • However, CPU usage for beluga_amcl is consistently higher than that for nav2_amcl throughout the whole range of particles, even in the region below $2k$ particles.

Non-multithreaded Beluga vs. Nav2 AMCL with Beam Sensor Model

Non-multithreaded Beluga vs. Nav2 AMCL with Beam Sensor Model

  • Memory usage for beluga_amcl grows slower than for nav2_amcl throughout the whole range of particle counts.

  • The recorded CPU usage for beluga_amcl is higher and saturates earlier than nav2_amcl with the beam sensor model.

  • The APE is similar for both nodes, with both nodes beginning to degrade deep into the CPU saturation region at around $50k$ particles

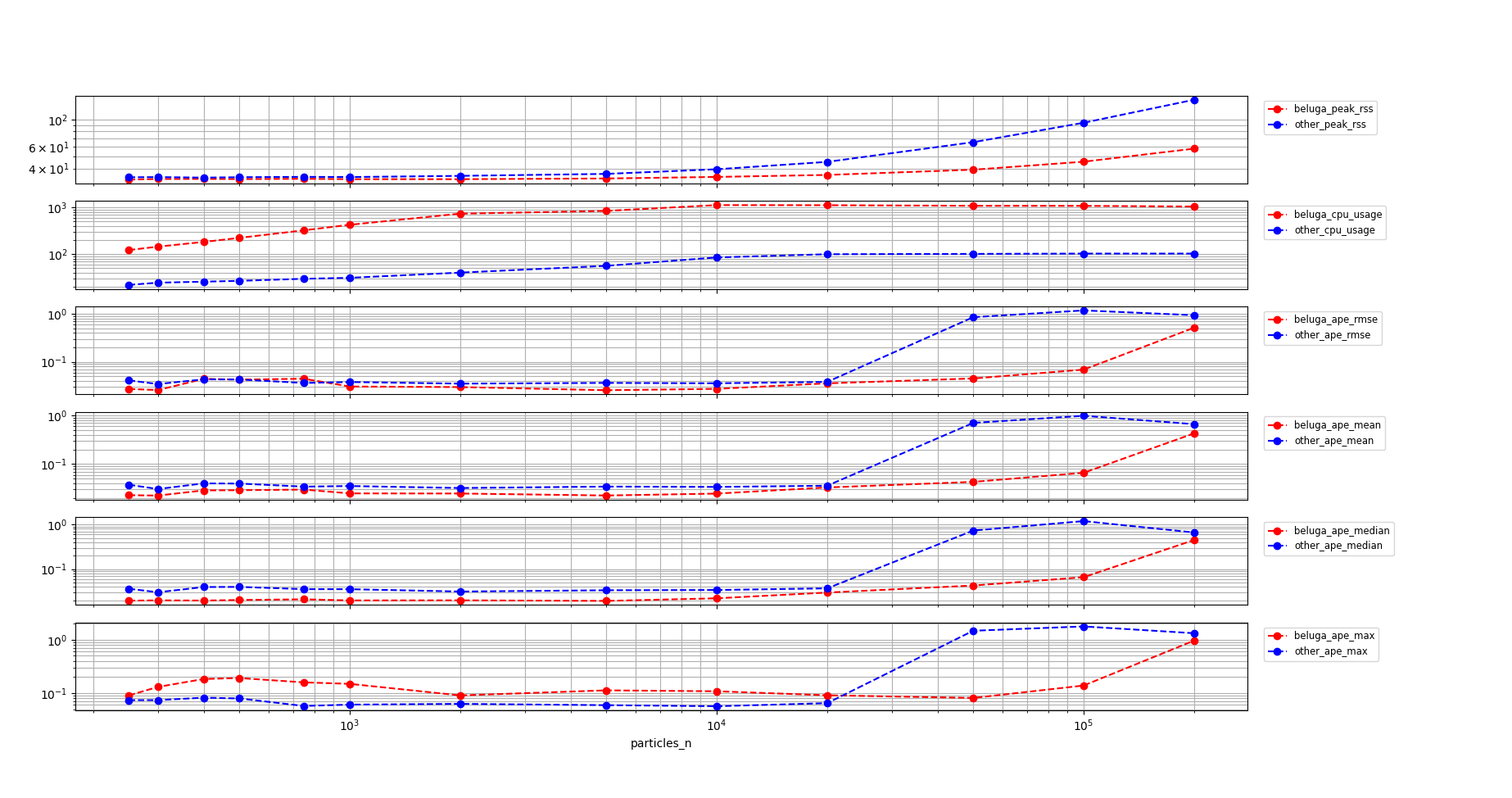

Multithreaded Beluga vs. Nav2 AMCL with Beam Sensor Model

Multithreaded Beluga vs. Nav2 AMCL with Beam Sensor Model

  • Memory usage for beluga_amcl grows slower than for nav2_amcl throughout the whole range of particle counts.

  • The recorded CPU usage for beluga_amcl is higher and saturates earlier than nav2_amcl with the beam sensor model.

  • The APE is on par for both nodes below $50k$ particles. Beyond this point both nodes degrade, but nav2_amcl degrades faster suddenly, while beluga_amcl degrades more gradually.

Conclusions

  • beluga_amcl provides better memory usage than nav2_amcl in all cases.

  • In all configurations, beluga_amcl provides similar localization error performance to nav2_amcl, degrading more gradually in the CPU saturation region.

  • CPU usage for beluga_amcl is higher than for nav2_amcl both for:

    • beluga_amcl with the beam sensor model.

    • beluga_amcl in multithreaded mode.

  • These experiments do not account for the reduction in iteration latency brought by multithreading. This is a topic for future work.

How to reproduce

To replicate the benchmarks, after building and sourcing the workspace, run the following commands from the current directory:

mkdir beam_beluga_seq
cd beam_beluga_seq
ros2 run beluga_benchmark parameterized_run --initial-pose-y 2.0 250 300 400 500 750 1000 2000 5000 10000 20000 50000 100000 200000  --params-file ../beam_params.yaml
cd -
mkdir beam_beluga_par
cd beam_beluga_par
ros2 run beluga_benchmark parameterized_run --initial-pose-y 2.0 250 300 400 500 750 1000 2000 5000 10000 20000 50000 100000 200000  --params-file ../beam_params_par.yaml
cd -
mkdir beam_nav2_amcl
cd beam_nav2_amcl
ros2 run beluga_benchmark parameterized_run --initial-pose-y 2.0 250 300 400 500 750 1000 2000 5000 10000 20000 50000 100000 200000 --params-file ../beam_params.yaml --package nav2_amcl --executable amcl
cd -
mkdir likelihood_beluga_seq
cd likelihood_beluga_seq
ros2 run beluga_benchmark parameterized_run --initial-pose-y 2.0 250 300 400 500 750 1000 2000 5000 10000 20000 50000 100000 200000  --params-file ../likelihood_params.yaml
cd -
mkdir likelihood_beluga_par
cd likelihood_beluga_par
ros2 run beluga_benchmark parameterized_run --initial-pose-y 2.0 250 300 400 500 750 1000 2000 5000 10000 20000 50000 100000 200000  --params-file ../likelihood_params_par.yaml
cd -
mkdir likelihood_nav2_amcl
cd likelihood_nav2_amcl
ros2 run beluga_benchmark parameterized_run --initial-pose-y 2.0 250 300 400 500 750 1000 2000 5000 10000 20000 50000 100000 200000 --params-file ../likelihood_params.yaml --package nav2_amcl --executable amcl
cd -

Once the data has been acquired, it can be visualized using the following commands:

ros2 run beluga_benchmark compare_results -b beam_beluga_seq/ -o beam_nav2_amcl
ros2 run beluga_benchmark compare_results -b beam_beluga_par/ -o beam_nav2_amcl
ros2 run beluga_benchmark compare_results -b likelihood_beluga_seq/ -o likelihood_nav2_amcl
ros2 run beluga_benchmark compare_results -b likelihood_beluga_par/ -o likelihood_nav2_amcl
