Performance comparison with nav2_amcl

Environment details

  • CPU: Intel® Core™ i7-8565U CPU @ 1.80GHz × 8

  • RAM: 2 x 16384 MB x 2667 MT/s

  • Host OS: Ubuntu 18.04.6 LTS

  • Commit hash: 47ed3643ec132e9357a0e16d7d0e97be902e2450

Results

The benchmarks was run using 1000, 2000, 5000, 10000 and 20000 particles. Beluga was run both using a sequential and a parallel executor. nav2_amcl only provides sequential execution.

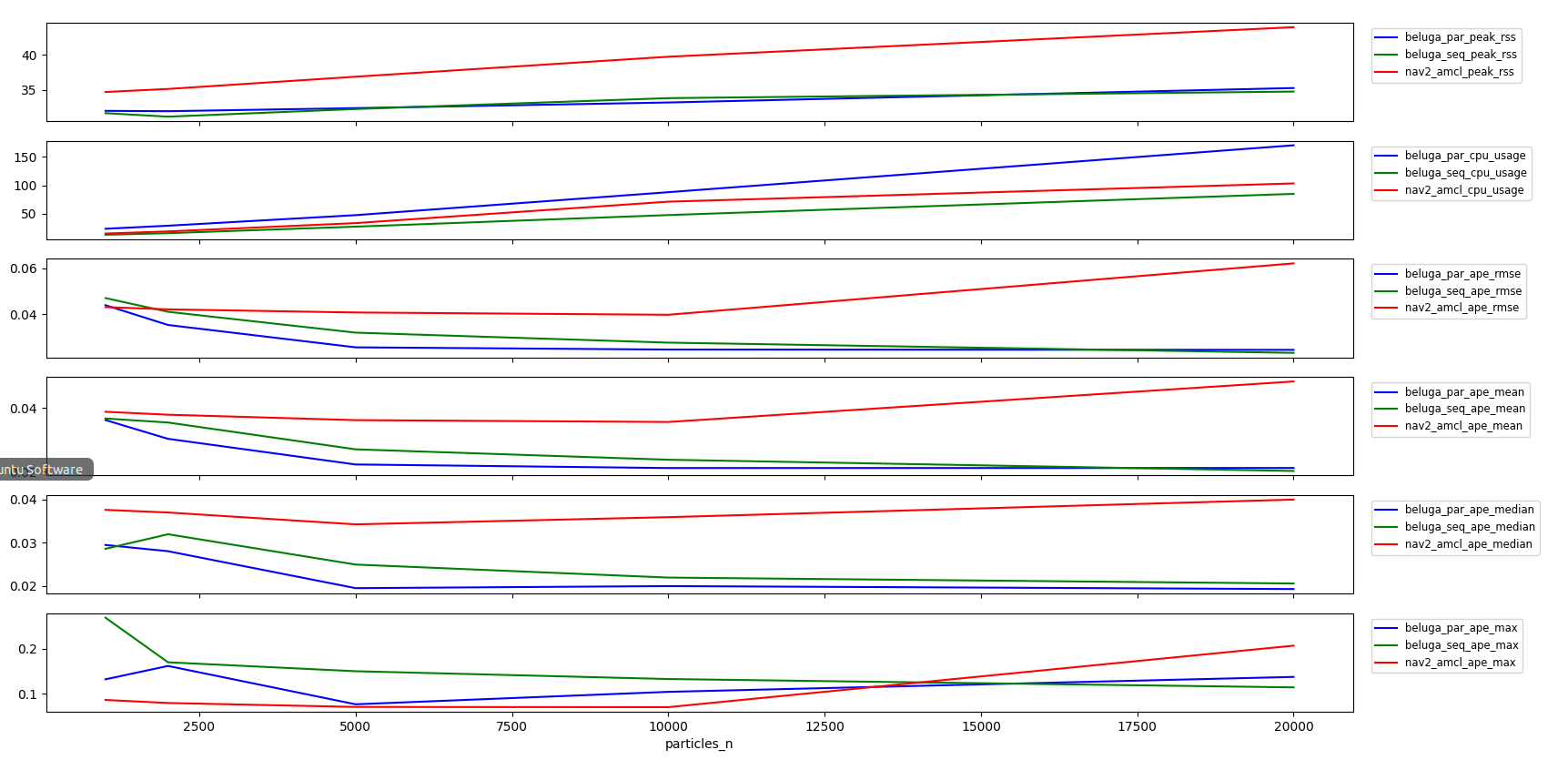

The results were the following:


It can be seen that:

  • Beluga needs less RAM memory, it’s peak usage for 20000 particles was 35MB, whereas it was 44MB for nav2_amcl.

  • Beluga uses less CPU when using the sequential executor. For 20000 particles, Beluga was using 85% of the CPU, whereas nav2_amcl was using 103%.

  • Beluga estimated trajectory absolute pose error is on par or slightly better than nav2_amcl. It can also be seen that beluga tends to improve on those metrics when using a higher number of particles, while nav2_amcl starts getting worst results. Probably because nav2_amcl starts dropping messages without being able to process the input fast enough.

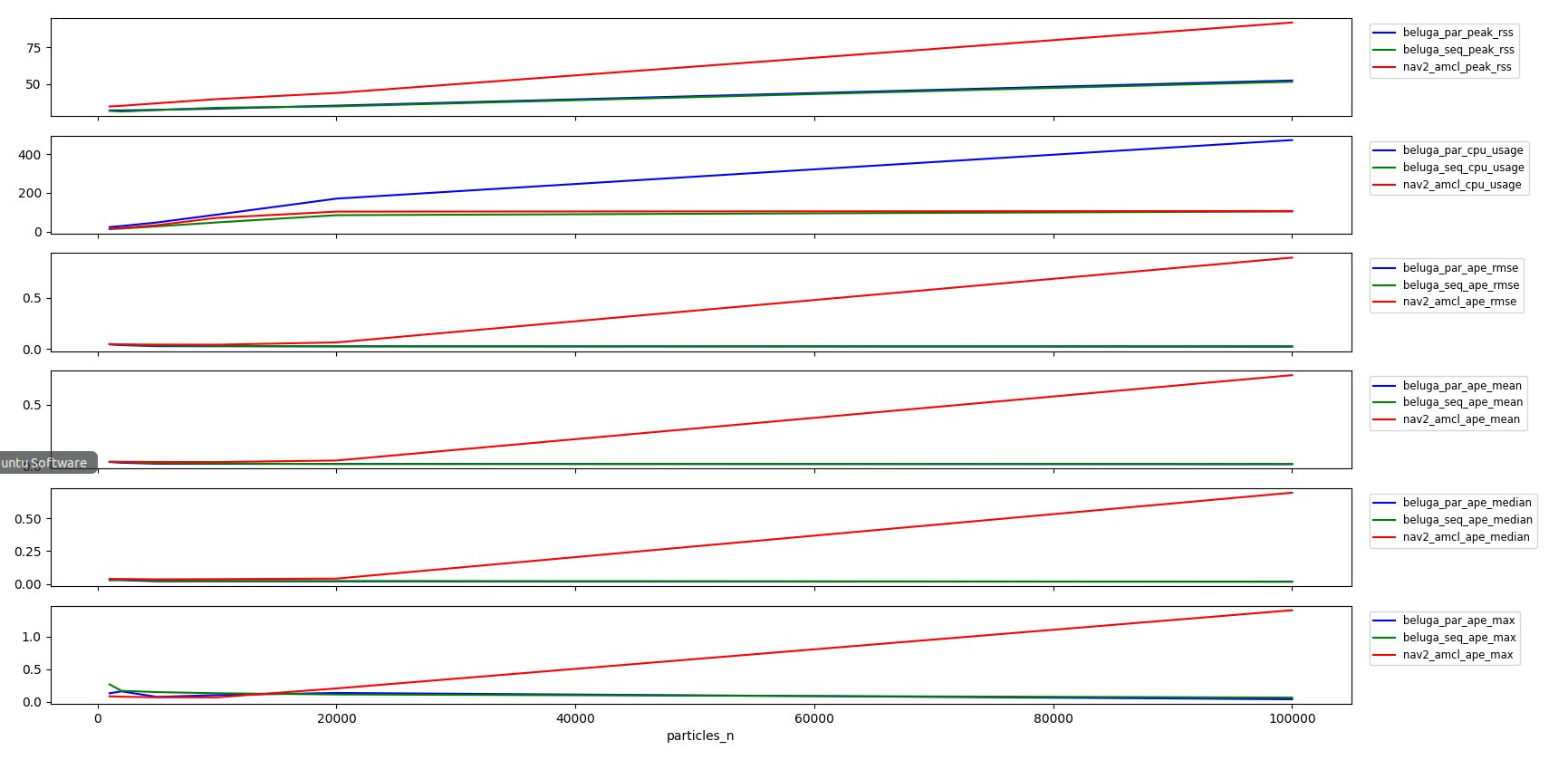

Besides that, beluga can handle a lot more particles using the parallel executor:


For more than 20000 particles, both nav2_amcl and Beluga using a sequential executor start using close to 100% of one cpu and can’t handle more load without starting to drop messages. Beluga can use a parallel executor, making use of multiple cores. This may not only be interesting when there is a larger amount of particles, but may also allow the use of more complex measurement models in the future.

How to reproduce

Running the benchmarks:

cd beluga_seq
ros2 run beluga_benchmark parameterized_run --initial-pose-y 2.0 1000 2000 5000 10000 20000 100000 --params-file ../params.yaml
cd -
cd beluga_par
ros2 run beluga_benchmark parameterized_run --initial-pose-y 2.0 1000 2000 5000 10000 20000 100000 --params-file ../params_par.yaml
cd -
cd nav2_amcl
ros2 run beluga_benchmark parameterized_run --initial-pose-y 2.0 1000 2000 5000 10000 20000 100000 --params-file ../params.yaml --package nav2_amcl --executable amcl
cd -

Visualizing the results:

ros2 run beluga_benchmark compare_results beluga_par/ beluga_seq/ nav2_amcl --max-particles 20000
ros2 run beluga_benchmark compare_results beluga_par/ beluga_seq/ nav2_amcl
