Connecting to Services

Introduction

Clients form “connections” to services to access the resources provided by the service, as discussed in Client-Service Object-Oriented Model. The connection consists of three pieces: the transport connection between the nodes, the client references/proxies, and the service endpoint. These pieces are all created automatically when the connection is created.

Connections can be created using several different methods. These methods include:

• Connect using a URL

• Create a subscription using a URL

• Create a subscription based on service criteria

• Connect using the Device Connector

• Connect using the PyRI Device Manager

• Use discovery to find available devices

The best method to use will depend on the exact use case. For most simple use cases, such as a laboratory environment, using a URL or a subscription with a URL is the simplest. For production environments, using the Device Connector or the PyRI Device Manager is probably more appropriate.

Note that firewalls and networking configurations can cause problems with connections between computers. See the “Networking and Firewalls” section below for more information.

This page is only an introduction to creating connections. See the more in-depth documentation for more details.

Connect using a URL

The simplest and most direct method to connect to a service is by using a URL and the ConnectService() function.

Finding the URL for a service can be tricky. There are multiple “transports” to connect to the service, and the exact contents of the URL are very specific to the network topology between the client and the service. In the examples above, the rr+tcp “scheme” at the beginning of the URL means the connection is using TCP/IP, a networking transport that is common on the Internet and local networks. localhost means that the service is on the same computer as the client. This would be replaced with the IP address of the computer running the service if it was not running on the same machine. For example, 192.168.11.14 is an IPv4 address for a computer on a local network. The ?service=reynard means that we are attempting to connect to a service named reynard on the node. The rr+local transport scheme for the “local” transport is also frequently used. This transport uses local sockets and has higher performance since it is only used for services running on the same computer.

The README, documentation, and examples for services will often contain information about how to find the URL for the service.

The Robot Raconteur Service Browser can be used to find service URLs using discovery.

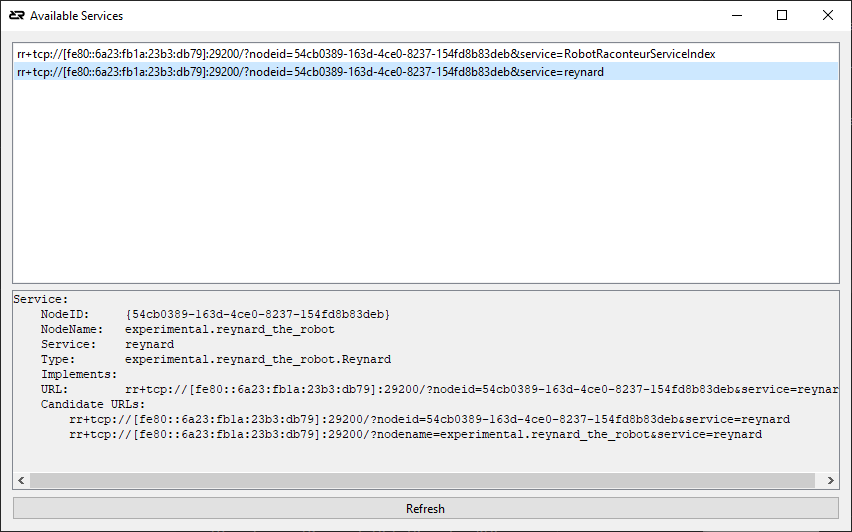

It is advised to always run the service browser on the same computer as the client. This will return a URL that is valid for that exact scenario. For example, when searching for Reynard the Robot on a different computer, the following URL is returned:

rr+tcp://[fe80::6a23:fb1a:23b3:db79]:29200/?nodeid=54cb0389-163d-4ce0-8237-154fd8b83deb&service=reynard

Note the IP address in this URL is an IPv6 link-local address rather than IPv4. By default, Robot Raconteur will use IPv6 addresses since they automatically configure and can be configured to be permanently static without the headache of IPv4 address assignment. The fe80:: prefix means that this address is only valid within a local network. Note that this example address is only valid for the example network and will be different for every setup. The nodeid and nodename are optional for TCP in some scenarios, but one or both are required for other transports like rr+local.

Example rr+local URLs:

rr+local:///?nodeid=e513887c-4512-4ce5-a7e7-1396cfc718f2&service=reynard

rr+local:///?nodename=experimental.reynard_the_robot&service=reynard

Note

If discovery does not work, there is probably a firewall configuration error. See the “Firewall” section below.

Note

The following sections on subscriptions and discovery describe how to create connections automatically based on criteria for selecting services without the need for a manually configured URL.

The URL has a special form:

<scheme>://<host>:<port>/?nodename=<nodename>&nodeid=<nodeid>&service=<servicename>

See the Framework Nodes and Communication documentation for more details on URLs.

Services opened using the ConnectService() function should be closed using the DisconnectService() function, or be closed automatically when the node is shut down.

Subscription using a URL

Robot Raconteur subscriptions are designed to create a robust connection to services and to manage the lifecycle of connections. They also allow for connectionless-like interaction with pipe and wire members. See subscriptions for more information.

Subscriptions can be created using a URL or through criteria. See the rest of this document for information on criteria-based connections.

Creating a subscription using a URL is similar to connecting to a service using ConnectService(), except instead of returning a client connection, a ServiceSubscription is returned.

In these examples, the SubscribeService() and GetDefaultClientWait() functions are used to create the connection. The GetDefaultClient() and GetDefaultClientWait() functions will return the “default” connected client. Since SubscribeService() only connects one client, this is the recommended way to retrieve the connection.

Note

In most cases, it is recommended to use SubscribeService() and GetDefaultClientWait() since it will not return an error if the client starts before the service is ready.

See subscriptions for more information about the capabilities of ServiceSubscription.

Subscription Based on Service Criteria

The SubscribeServiceByType() function returns a ServiceSubscription that uses discovery to connect to services rather than using a URL. It decides which services to connect to based on “criteria”, essentially filtering to select services to connect to.

The available criteria are:

• The service type of the root object, for example, com.robotraconteur.robotics.robot.Robot

• The name of the service

• The node name or node ID of the node containing the service

• The type of transport used to connect to the service

• The attributes of the service

• A user-defined predicate function

Note

In most cases, it is preferred to use the Device Connector described in the next section rather than directly using SubscribeServiceByType().

Note

SubscribeServiceByType() will match services where the root object extends/implements the required type along with direct implementations. This allows for new types to extend existing types and still be matched, allowing for forward compatibility.

Simple examples connecting all services of a specific type, in this case, experimental.reynard_the_robot.Reynard:

The following examples show how to use filters with SubscribeServiceByType().

The SubscribeServiceByType function and ServiceSubscription provide sophisticated capabilities. See subscriptions and the documentation specific to each programming language for more information.

Device Connector

The Device Connector is a utility provided as part of the Robot Raconteur Companion for Python and C++. The Device Connector uses the “Device” concept discussed in device-concept that is introduced by the Robot Raconteur Standard Types. All “Devices” provide a DeviceInfo structure that contains metadata about the device, including a unique identifier (name and UUID), model and manufacturer information, device class information, serial number, description, tags, and more. The Device Connector uses this metadata to connect to devices. The Device Connector can also use URLs and subscription filters to connect to services. This capability is built on top of the Robot Raconteur subscription system.

The Device Connector uses the DeviceConnectorDetails structure to specify which devices to connect to. The DeviceConnectorDetails can use the following methods to select devices:

• Device name, along with additional information like tags, manufacturer, model, and serial number. The device must provide a DeviceInfo structure to use this method.

• A list of candidate URLs

• A service type and filter

The following example uses a DeviceConnector to connect to the camera found in the Training Simulator robot scenes:

The following example uses a YAML file to specify the camera details.

PyRI Device Manager

The PyRI Open Source Teach Pendant uses a built-in “Device Manager” to add and remove devices from the system. The Device Manager can be accessed using a user interface or a Robot Raconteur service. The Device Manager is typically used with Robot Raconteur services that provide a DeviceInfo structure.

Third-party nodes can connect to the PyRI Device Manager and use it to connect to devices. In fact, almost all of the functionality provided by the PyRI Teach Pendant can be used through Robot Raconteur services. This is a powerful development option since it allows the developer to utilize all the features of PyRI while developing their projects.

The following example shows how to connect to the PyRI Device Manager and use it to connect to a camera:

Networking and Firewalls

Robot Raconteur uses standard IPv4 and IPv6 networking protocols to communicate between nodes when they are on different computers, or using localhost (127.0.0.1) when they are on the same computer. Currently, Robot Raconteur uses TCP/IP for communication; however, UDP/IP communication using QUIC is planned. Networking can be an extremely complex topic and has many pitfalls that can cause connections to fail. Robot Raconteur is primarily concerned with local connections between devices on the same local Ethernet network, which reduces the complexity somewhat. This section provides a brief overview of the relevant networking concepts to create connections. See also the Networking and Firewall Configuration Application Note for up-to-date information on networking and firewall configuration, along with tooling to help configure networks correctly.

Note

See the Networking and Firewall Configuration Application Note for a more in-depth discussion of networking and firewall configuration.

Note

Robot Raconteur has the official TCP and UDP port number 48653 assigned by the IANA! The Robot Raconteur Port Sharer uses TCP port 48653. Server nodes that are not using the port sharer should use a different port number. UDP port 48653 is used for discovery.

Networking Fundamentals

Devices on an IP network have an “IP Address,” which allows for packets to be routed to the correct device.

IPv4 addresses are 32-bits and are typically written as four decimal numbers separated by periods, for example, 192.168.12.14. IPv4 addresses only have around 4 billion possible addresses, which means that it is not possible to assign a unique address to every device in existence. Configuration is required to guarantee a static IPv4 address, which causes significant complications.

IPv6 addresses use a 128-bit address space, which allows for more than 340 trillion, trillion, trillion possible addresses. IPv6 addresses have the concept of “link-local” addresses, which are only valid on a single local network. They start with fe80::, and are followed by a 64-bit hexadecimal number, for example, fe80::6a23:fb1a:23b3:db79. This number can be based on the MAC address of the adapter or randomly generated. Crucially for Robot Raconteur, this is an automatically configured address that is statistically guaranteed to be unique on the local network. Robot Raconteur can use both IPv4 and IPv6 addresses, but IPv6 is preferred since it is easier to configure and more robust. The discovery and subscription system will return IPv6 addresses by default.

Note

By default, Linux uses a randomly generated IPv6 link-local address for privacy reasons. This random address may change occasionally, which is highly undesirable for Robot Raconteur services. To disable, run the following command in a terminal:

cat >> /etc/sysctl.conf <<EOT
net.ipv6.conf.all.use_tempaddr=0
net.ipv6.conf.default.use_tempaddr=0
EOT

sysctl -p

Source

To determine the IP address of a device:

• Use ipconfig on Windows in a command prompt

• Use ip a on Linux in a terminal

• Use ifconfig on MacOS in a terminal

These will typically return many addresses, some with a physical adapter attached to a network, but many more with virtual adapters that are not relevant. It is recommended that the Service Browser be used on the same computer as the client to determine the correct address to use since it can be very difficult to determine the correct address manually unless you are familiar with networking concepts.

Firewall Configuration

Most modern operating systems have a firewall that blocks incoming connections by default. This is an important security feature, but it will by default block Robot Raconteur connections. The firewall must be configured to allow full access for the program running the Robot Raconteur node. The following subsections discuss how to configure the firewall for different operating systems.

Note

Robot Raconteur uses IPv6 UDP multicast port 48653 for discovery. This port must be open for discovery, or the program must have an exception in the firewall!

Windows Firewall

By default, Windows will block Robot Raconteur. It is necessary to either add an exception or disable the firewall completely. Disabling the firewall is useful for a development environment, but in general, it is recommended to add an exception for the program running the Robot Raconteur node.

• Instructions to disable the Windows Firewall: Windows Firewall

• Instructions to add an exception to the Windows Firewall for a specific program: How to Allow or Block a Program Through Firewall Windows 10

When a program first starts and attempts to open a port, Windows will typically prompt the user to allow or block the connection. This is the easiest way to configure the firewall.

Linux Firewall

Ubuntu and Debian do not by default have a firewall enabled. If a firewall is enabled, it is typically UFW or iptables. Configuring these firewalls is more complex than Windows, and it is recommended to consult the documentation.

MacOS Firewall

MacOS does not typically have a firewall enabled that blocks Robot Raconteur connections.
